数据结构第一讲

一、线性查找

线性查找是最简单的查找算法。

代码实现

public class SquareDemo {

public static void main(String[] args) {
if (args.length > 0) {
int square = Integer.parseInt(args[0]);
for (int i = 0; i < square; i++) {
if (i * i == square) {
System.out.println(i);
return;
}
}
}
}
}

二、二分查找

实现思想:

  1. 数组有序。
  2. 数组按中间分两段,查找数大于中间往右段找,小于中间往左段找。
  3. 再将所在段再从中间分两段,重复步骤2。
  4. 如未找到一直重复2、3步骤。

图解:

定义数组如下,left为左边下标,right为右边下标,目标数为16

通过(left + right)/2得到中值midIndex。

比较midIndex值13余16的大小,由于16大,所以再13右边寻找。

再通过(left + right)/2得到中值midIndex。

此时midIndex值我16,与查找的值相等,midIndex下标为4.

代码实现

package com.yang.jdk;

import java.util.Arrays;

/**
* @author yang
* @since 2022/3/28
*/
public class BinarySearch {
public static void main(String[] args) {
int[] arr = {14, 5, 3,13,16,28};
Arrays.sort(arr);
int index = binarySearch(arr, 0, arr.length - 1, 16);
System.out.println(index);
}

/**
* 二分查找
* @param arr 数组
* @param left 左下标
* @param right 右下标
* @param value 查找的值
* @return
*/
public static int binarySearch(int[] arr, int left, int right, int value){
int midIndex = (left+right)/2;
int minValue = arr[midIndex];
if (left <= right) {
if (minValue > value) {
binarySearch(arr, 0, midIndex - 1, value);
} else if (minValue < value) {
binarySearch(arr, midIndex + 1, right, value);
} else {
return midIndex;
}
}
return -1;
}
}

三、递归

简单点就是自己调用自己的方法,有条件判断什么时候停止!

如何计算阶乘:

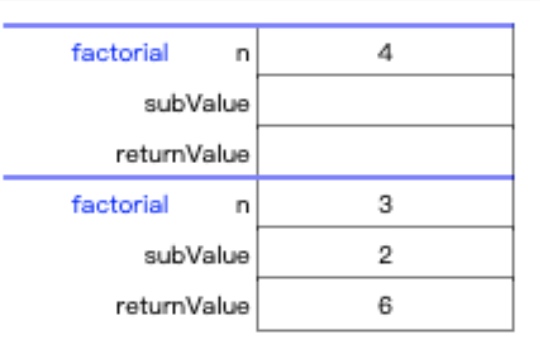

图解:

例如求4的阶乘,我们可以看成4! = 43! = 432! = 4321

求出2的阶乘

求出3的阶乘

求出4的阶乘

代码实现

package com.yang.jdk;

/**
* @author yang
* @since 2022/3/28
*/
public class Recursion {

public static void main(String[] args) {
long factorial = factorial(4);
System.out.println(factorial);
}

/**
* 阶乘
*
* @param n
* @return
*/
public static long factorial(int n) {
if (n == 1) {
return 1;
} else {
return n * factorial(n - 1);
}
}
}

以上就是递归的实现案例,业务中用到的递归还是比较多,合理利用递归,减轻业务代码。

四、斐波那切数列

什么是斐波那契数列:有一个数列它的0号位置的值是0,1号位置的值是1,当要求的位置(n)大于1时,其值为(n-1)+(n-2)。

递归方式:

代码实现

package com.yang.jdk;

/**
* @author yang
* @since 2022/3/28
*/
public class Fibonacci {

public static void main(String[] args) {
int fibonacci = fibonacci(5);
System.out.println(fibonacci);
}

public static int fibonacci(int n) {
if(n <= 1) {
return n;
}
return fibonacci(n-1) + fibonacci(n-2);
}
}

空间换时间

将所计算出的值放入缓存中,不需要重复计算。

public static int fibo(Map<Integer, Integer> fibo, int n) {
Integer fib = fibo.get(n);
if(Objects.isNull(fib)) {
if (n <= 1) {
return n;
}
fib = fibo(fibo, n - 1) + fibo(fibo, n - 2);
fibo.put(n, fib);
}
return fib;
}

不使用递归

public int climbStairs(int n) {
if (n == 1) {
return 1;
}
int first = 1;
int second = 2;
for (int i = 3; i <= n; i++) {
//每次计算都是以上次计算结果为基础
int third = first + second;
first = second;
second = third;
}
return second;
}

五、堆栈

栈是先进后出,后进先出的一种数据结构。将栈想象成弹夹就可以,而子弹就是每一个数据。

如何实现数组的逆序:

代码实现

package com.yang.jdk;

import java.util.Arrays;
import java.util.Stack;

/**
* @author yang
* @since 2022/3/28
*/
public class StackDemo {
public static void main(String[] args) {
int[] arr = {3, 5, 2, 1, 5, 7, 4};
int[] reverse = reverse(arr);
System.out.println(Arrays.toString(reverse));
}

/**
* 数组逆序
*
* @param arr 需要逆序的数组
* @return
*/
public static int[] reverse(int[] arr) {
if (arr.length == 0) {
return arr;
}
Stack stack = new Stack();
for (int i = 0; i < arr.length; i++) {
stack.push(arr[i]);
}
int[] array = new int[arr.length];
for (int j = 0; !stack.isEmpty(); j++) {
array[j] = (int) stack.pop();
}
return array;
}
}

六、队列

什么是队列

队列是数据结构中比较重要的一种类型,它支持 FIFO,尾部添加、头部删除(先进队列的元素先出队列),跟我们生活中的排队类似。

求某个数的完全平方数和的最少个数

  • 11入队,取出队首,找到与其相差完全平方数的数入队(10、7、2入队) ,层数加一。
  • 再次取出队列中的所有元素(取一层),并且将相差完全平方数的数入队。如果取出的数为零,此时的层数就是所求结果;否则如果该层没有出现0,层数加一,再次操作步骤2
  • 取到0,就是最短的路径。而红色区域表示,被重复添加的数字。

代码实现

package com.yang.jdk;

import java.util.LinkedList;
import java.util.Queue;

/**
* @author yang
* @since 2022/3/28
*/
public class QueueDemo {

public static void main(String[] args) {
int i = numSquares(11);
System.out.println(i);
}

public static int numSquares(int n) {
Queue<Integer> queue = new LinkedList<>();
queue.offer(n);
int [] visited = new int[n+1];
int count = 0; // 记录层数 层数就是最短路径
while(!queue.isEmpty()) {
// 每次循环将队列中的元素取完(取完一层)
int len = queue.size();
for(int i = 0; i<len;i++) {
int temp = queue.poll();// 取出队首
// System.out.println(temp);
if(temp == 0) { // 找到0 就找到了最短路径
return count;
}
// 将相差平方数的数添加到队列
for(int k = 1; temp - k*k >= 0;k++){
if(visited[temp - k*k] == 0) {
queue.offer(temp - k*k);
visited[temp - k*k] = 1;
}

}
}
count++;
}
return count;
}
}
